FDD6296/FDU6296 30V N-Channel Fast Switching PowerTrench MOSFET is a high performance MOSFET from Fairchild Semiconductor Corporation, which features low gate charge, low RDS(ON) and fast switching speed, suitable for DC/DC converter and power management applications.

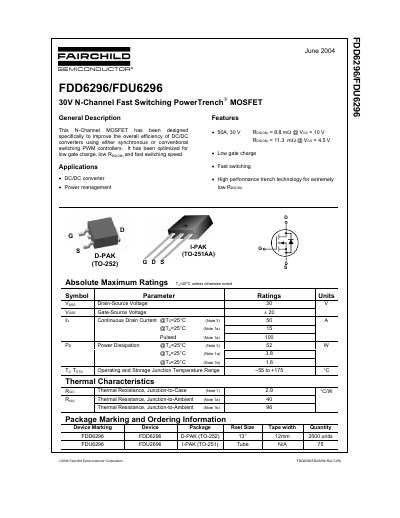

This document is a datasheet for the Fairchild FDD6296 and FDU6296, which are 30V N-Channel Fast Switching PowerTrench MOSFETs. These devices are designed to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. They are optimized for low gate charge, low Ron, and fast switching speed.
| Drain-Source Voltage | 30 V |
|---|---|
| Operating and Storage Junction Temperature Range | -55 to +175 °C |
| Drain-Source Avalanche Current | 15 A |
| Static Drain-Source On-Resistance (Typical) | 8.8 mΩ |
| Input Capacitance | 1440 pF |
| Output Capacitance | 400 pF |
| Turn-On Delay Time (Typical) | 11 ns |
| Total Gate Charge (Typical) | 31.5 nC |
| Diode Reverse Recovery Time | 25 ns |
It is designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
The maximum continuous drain current at a case temperature of 25°C is 50 A.
The operating and storage junction temperature range is from -55°C to +175°C.
