The document describes a N-channel power MOSFET called PowerTrench® MOSFET. The product has a drain-source voltage of 60V, maximum continuous drain current of 30A, and maximum pulsed drain current of 100A. The maximum power dissipation is 50W. The product has good thermal characteristics, with an operating and storage temperature range of -55 to +150 degrees Celsius.

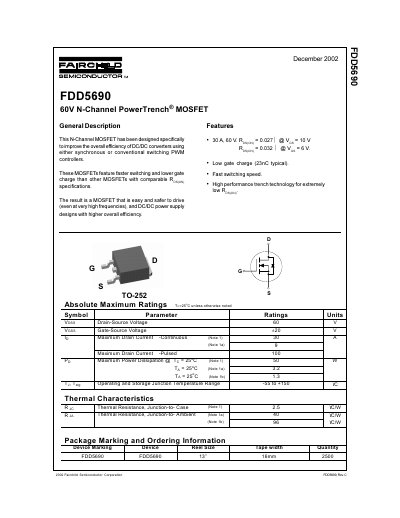

The document describes the Fairchild Semiconductor FDD5690, an N-Channel MOSFET specifically designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Key features include a 30A continuous drain current rating, low on-resistance (Rds(ON) = 0.0272 @ VDS=10V), and fast switching speeds.
| Drain-Source Voltage (VDS) | 60 V |
|---|---|
| On-Resistance (Rds(ON)) @ VDS=10V | 0.0272 Ohms |
| Maximum Power Dissipation @ Tc = 25°C | 50 W |
| Operating Junction Temperature Range | -55 to +150 °C |
The typical gate charge is 23nC.
No, the products are not authorized for use as critical components in life support devices or systems without express written approval.
