The FDA032N08 is a N-Channel MOSFET produced by Fairchild Semiconductor Corporation. It has low RDS(on), high switching speed, low gate charge, high performance Trench technology and is RoHS compliant. It is suitable for DC/DC converters/synchronous rectification applications.

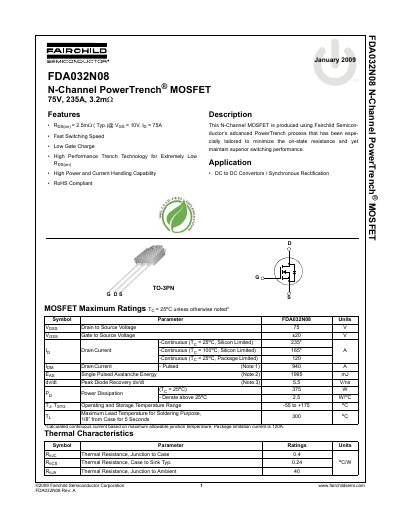

This document is a datasheet for the Fairchild Semiconductor FDA032N08, an N-Channel PowerTrench MOSFET designed for high power and current handling. The device features a 75V drain-to-source voltage rating and a continuous drain current capability of 235A. It is optimized for applications such as DC to DC converters and synchronous rectification, utilizing advanced PowerTrench technology to minimize on-state resistance.
| Drain to Source Voltage | 75 V |
|---|---|
| Package Type | TO-3PN |
| Operating Temperature Range | -55 to +175 °C |
| Thermal Resistance, Junction to Case | 0.4 °C/W |
It is designed for use in DC to DC Convertors and Synchronous Rectification.
Yes, the device is RoHS Compliant.
