FCP4N60 is a 600V N-Channel MOSFET with low conduction loss, superior switching performance, and high voltage withstand capability. It is suitable for various AC/DC power conversion applications.

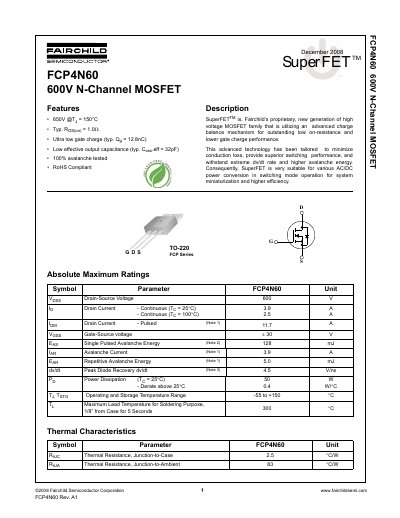

The document describes the Fairchild Semiconductor FCP4N60, a 600V N-Channel MOSFET utilizing proprietary SuperFET technology. Key features include ultra-low gate charge (typical Qg = 12.8nC), low effective output capacitance, and RoHS compliance. The device is designed for AC/DC power conversion in switching mode operations to minimize conduction loss and provide superior switching performance.
| Drain-Source Voltage | 600 V |
|---|---|
| Continuous Drain Current (Tc = 100°C) | 2.5 A |
| Gate-Source Voltage | +30 V |
| Total Gate Charge (Typ) | 12.8 nC |
| Effective Output Capacitance (Typ) | 32 pF |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | TO-220 |
The device operates and stores within a temperature range of -55 to +150 °C.
