This document describes the features and characteristics of the UniFET TM FDA24N40F N-Channel MOSFET produced by Fairchild Semiconductor Corporation. It has features such as 400V voltage, 23A current, 0.19Ω resistance, etc., and is suitable for high efficient switched mode power supplies and active power factor correction.

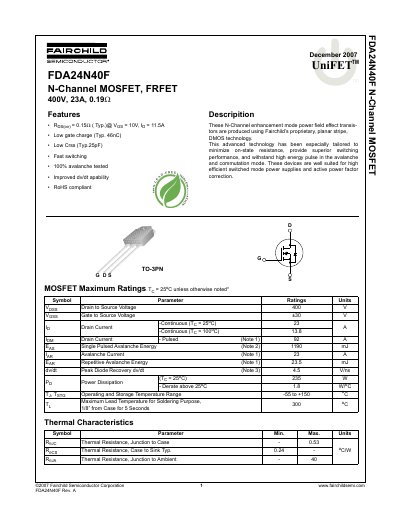

This document is a datasheet for the FDA24N40F, an N-Channel enhancement mode power field effect transistor (FRFET) produced using Fairchild's proprietary planar stripe DMOS technology. The device is designed for high-efficiency switched mode power supplies and active power factor correction applications.
| Drain to Source Voltage | 400 V |
|---|---|
| Package Type | TO-3PN |
| Total Gate Charge | 46 nC (Typ.) |
| Reverse Transfer Capacitance | 25 pF (Typ.) |
| Operating Temperature Range | -55 to +150 °C |
The operating and storage temperature range is from -55 to +150 °C.
