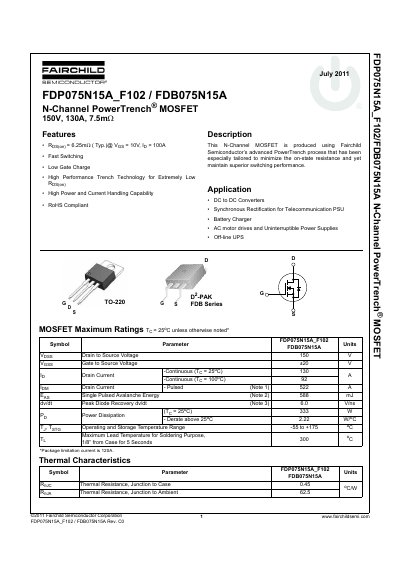

FDP075N15A_F102 / FDB075N15A N-Channel PowerTrench® MOSFET is a high performance MOSFET device produced by Fairchild Semiconductor Corporation. It has low RDS(on), low gate capacitance, high current handling capability and other features.
The document provides comprehensive electrical characteristics for the FDP075N15A and FDB075N15A devices. Key features include a maximum drain current of 130A at 25°C, an on-resistance (Rds(on)) of typically 6.25mΩ to 7.5mΩ, and operation up to 175°C. The devices utilize Fairchild's PowerTrench technology for low resistance and fast switching performance.
| Drain to Source Voltage (Vdss) | 150 V |
|---|---|
| Gate to Source Voltage (Vgss) | +20 V |
| Continuous Drain Current (Tj = 25°C) | 130 A |
| Operating and Storage Temperature Range | -55 to +175 °C |
The component operates and stores within a temperature range of -55 to +175 °C.
