FDB070AN06A0 / FDP070AN06A0 is a N-Channel PowerTrench® MOSFET with an operating voltage of 60 V and current of 80 A. The typical on-resistance is 7mΩ.

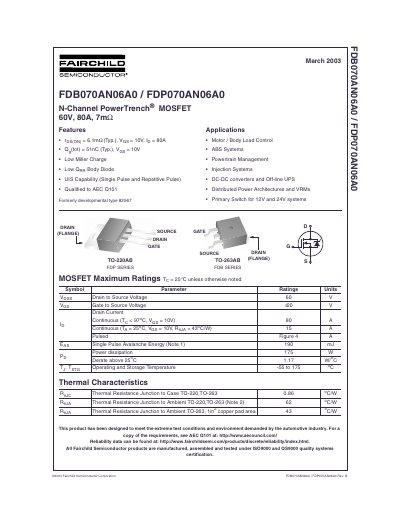

This document is a datasheet for the Fairchild Semiconductor FDB070AN06A0 and FDP070AN06A0 N-Channel PowerTrench MOSFETs. These devices are rated for 60V, 80A continuous drain current, and a typical on-resistance of 6.1mΩ. They are designed for applications such as motor control, ABS systems, and DC-DC converters, and are qualified to AEC Q101 standards for the automotive industry.
| Drain to Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Tg < 97°C) | 80 A |
| Typical On-Resistance | 6.1 mΩ |
| Total Gate Charge | 51 nC |
| Power Dissipation | 175 W |
| Operating Temperature Range | -55 to 175 °C |
| Thermal Resistance Junction to Case | 0.86 °C/W |
The maximum rated junction temperature is 175°C.
