IXGK 50N50BU1/50N60BU1 is an IGBT product produced by IXYS. It has high frequency characteristics, adopts the international standard TO-264 AA package, and has low Vce(sat), MOS Gate turn-on and other characteristics.

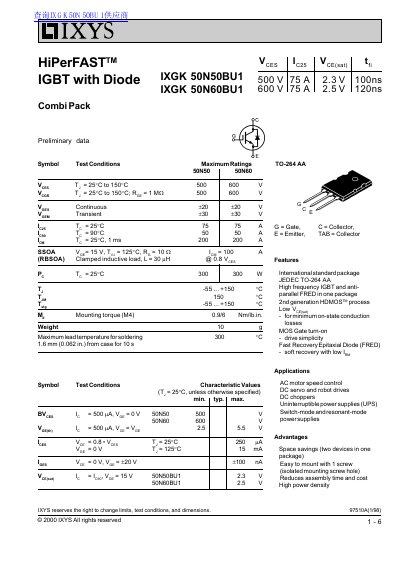

This document provides preliminary technical specifications for the IXYS IXGK series, specifically models 50N50BU1 and 50N60BU1. These are high-frequency IGBTs combined with a Fast Recovery Epitaxial Diode (FRED) in a single TO-264 AA package.
| Package Type | TO-264 AA |
|---|---|
| Operating Temperature Range | -55 ... +150 °C |
The mounting torque should be set to 0.9 Nm or 6 lb.in. using an M4 screw.
