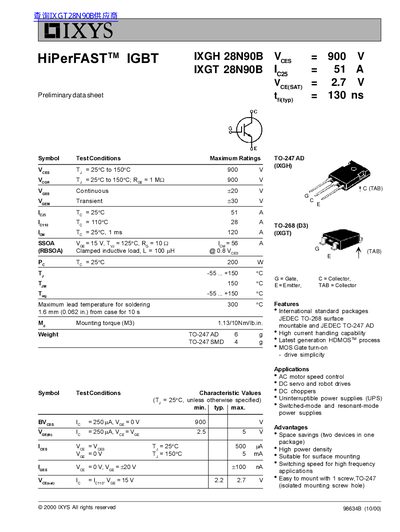

This document provides preliminary technical specifications for the IXYS IXGH 28N90B and IXGT 28N90B High Power Fast (HiPerFAST) Insulated Gate Bipolar Transistors. The devices feature MOS gate turn-on technology and are available in JEDEC TO-247 AD and TO-268 surface mountable packages.
| Collector-Emitter Voltage (Vces) | 900 V |
|---|---|
| Continuous Collector Current (Ic) | 51 A |
| Pulse Collector Current (Icpv) | 120 A |
| Operating Temperature Range | -55 ... +150 °C |
Applications include AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
The maximum lead temperature for soldering is 300 °C.
