This product is an IGBT device with international standard JEDEC TO-220 AB package. It has low conduction loss, MOS gate drive simplicity, fast recovery diode soft recovery and other features. It can be applied to AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switch-mode and resonant-mode power supplies.

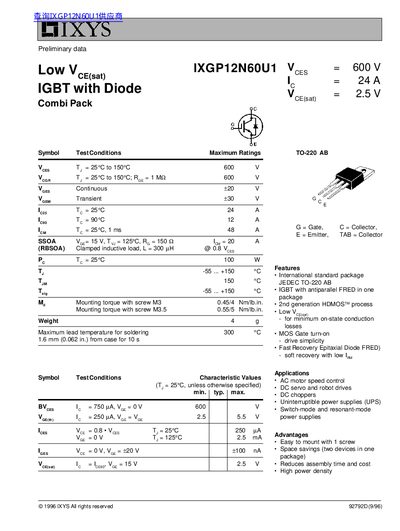

This document provides preliminary data for the IXYS IXGP12N60U1, a combination package containing an IGBT and an antiparallel Fast Recovery Epitaxial Diode (FRED). The device is designed for applications requiring high power density and space savings, such as AC motor speed control, DC servo drives, and uninterruptible power supplies.
