IXGR 35N120B is an IGBT product from IXYS. Its maximum rated voltage is 1200 V, maximum rated current is 70 A, and maximum rated power is 200 W. This product uses TO-247AD package, has high current handling capability, MOS gate turn-on - drive simplicity, easy assembly and high power density.

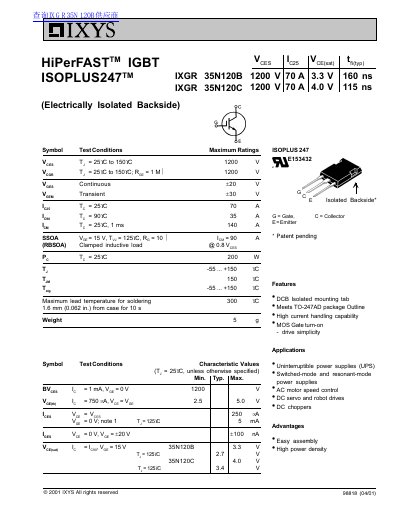

This document is a datasheet for the IXYS IXGR 35N120B and IXGR 35N120C HiPerFAST IGBTs. These devices are designed for high current handling and feature a DCB isolated mounting tab for thermal management. The datasheet provides maximum ratings, electrical characteristics, and switching times for both models under various test conditions.
| Collector-Emitter Voltage (IXGR 35N120C) | 1200 V |
|---|---|
| Collector Current (IXGR 35N120C) | 70 A |
| Collector-Emitter Saturation Voltage (IXGR 35N120C) | 4.0 V |
| Package Type | ISOPLUS 247 |
