IXYS IXGX50N60AU1/IXGX50N60AU1S IGBT Datasheet

This datasheet introduces the characteristics and parameters of HiPerFASTTM VCES = 600 V IGBT with Diode Combi Pack

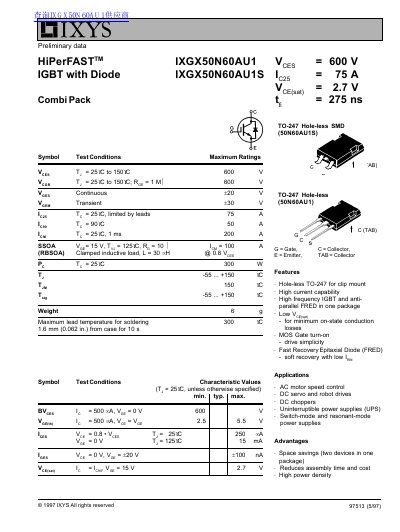

IXYS IXGX50N60AU1/IXGX50N60AU1S IGBT Datasheet - cover page
Brand
IXYS
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
6
File format
PDF
File size
190 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
4C0FE1F9B6A11B30968522ED13F15CA5
PDF
IXYS IXGX50N60AU1/IXGX50N60AU1S IGBT Datasheet PDF

About this manual

This document provides preliminary technical data for the IXYS IXGX50N60AU1 IGBT and the IXGX50N60AU1S Combi Pack, which integrates an IGBT with a Fast Recovery Epitaxial Diode (FRED). The device is housed in a hole-less TO-247 package designed for clip mounting and space savings.

What's inside

  • Maximum Ratings
  • Features
  • Applications
  • Advantages
  • Switching Times
  • Reverse Diode Characteristics
  • Electrical Characteristics
  • Thermal Characteristics
  • Package Dimensions

Specifications

Collector-Emitter Saturation Voltage2.7 V
Package TypeTO-247 Hole-less SMD
Operating Temperature Range-55 to +150 °C
Maximum Lead Temperature for Soldering300 °C
