This document is the detailed parameter manual of an IGBT module produced by IXYS company. The module uses the international standard miniBLOC package, which has the characteristics of high power dissipation, high isolation voltage, high current, low on-state voltage drop, etc. It is suitable for AC motor speed control, DC servo and robot drives, DC choppers, buck converters, etc.

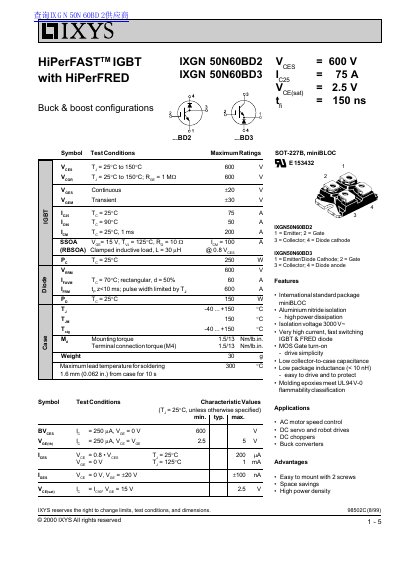

The document provides a comprehensive technical overview of the IXYS IXGN50N60BD2/BD3 IGBT modules, which feature an international standard miniBLOC package with aluminium nitride isolation. Key features include high power dissipation, very fast switching speeds, and low collector-to-case capacitance suitable for demanding industrial applications. This manual is written in Chinese.
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.5 V |
|---|---|
| Turn-off Time (tfi) | 150 ns |
| Isolation Voltage | 3000 V~ |
| Package Type | SOT-227B, miniBLOC |
The modules are suitable for AC motor speed control, DC servo and robot drives, DC choppers, and buck converters.
The maximum mounting torque for these modules is 1.5 Nm (or 13 lb.in).
Yes, M4 screws are supplied with the IXGN 50N60BD2 and IXGN 50N60BD3 modules.
