IXGN 50N60B is a high performance IGBT, with a maximum collector-emitter reverse voltage of 600V, a rated current of 75A and a saturation voltage of 2.5V.

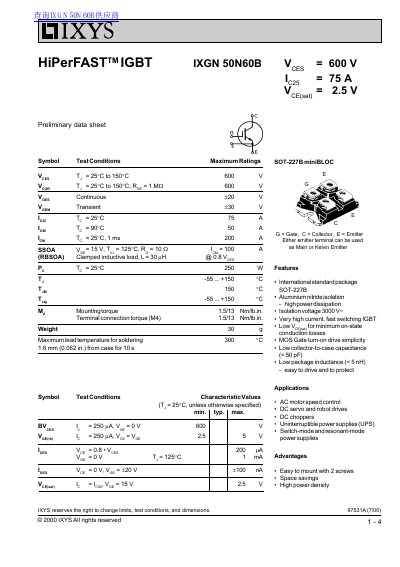

This document is a preliminary datasheet for the IXYS IXGN 50N60B, a HiPerFAST IGBT housed in a SOT-227B miniBLOC package. Key specifications include a collector-emitter voltage (VCE) of 600 V and a continuous collector current (IC25) of 75 A at 25°C. The device features low saturation voltage and low collector-to-case capacitance, making it suitable for high-power switching applications.
| Collector-Emitter Saturation Voltage | 2.5 V |
|---|---|
| Package Type | SOT-227B miniBLOC |
| Isolation Voltage | 3000 V~ |
| Thermal Resistance Junction-to-Case | 0.50 K/W |
Yes, the document states that either emitter terminal can be used as Main or Kelvin Emitter.
Recommended applications include AC motor speed control, DC servo and robot drives, DC choppers, and UPS systems.
