This datasheet is for a switching power device from IXYS. The device is packaged in a TO-264 AA package and has a low Vce(sat), is easy to install, and has a high power density.

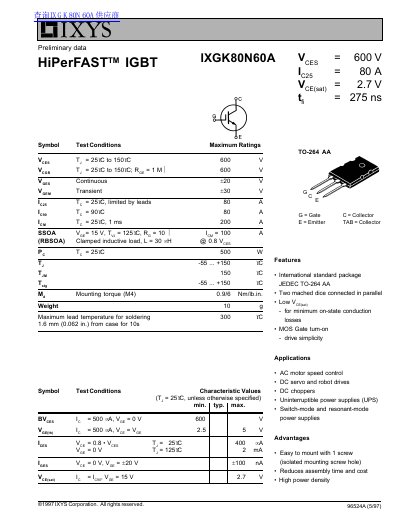

This document provides technical specifications and characteristics for the IXYS IXGK80N60A IGBT. It details features such as the International standard package JEDEC TO-264 AA and low VCE(sat) for minimum on-state conduction losses. The device is designed for applications including AC motor speed control, DC servo and robot drives, DC choppers, and switch-mode power supplies.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current | 80 A |
| On-State Voltage | 2.7 V |
| Package Type | JEDEC TO-264 AA |
| Mounting Torque | 0.9/6 Nm/lb.in. |
| Thermal Resistance Junction-to-Case | 0.25 K/W |
The device is suitable for AC motor speed control, DC servo and robot drives, DC choppers, and various power supply applications.
The maximum junction temperature (TJ) is 150 °C.
The typical turn-off time (tfi) is 350 ns.
