This document describes the features and characteristics of a product named SOT-227B miniBLOC, including aluminium nitride isolation, high power dissipation, isolation voltage of 3000V~, very high current, fast switching IGBT, low VCE(sat), MOS Gate turn-on, low collector-to-case capacitance, and low package inductance. The product is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switch-mode and resonant-mode power supplies. It offers advantages such as easy mounting with 2 screws, space savings, and high power density.

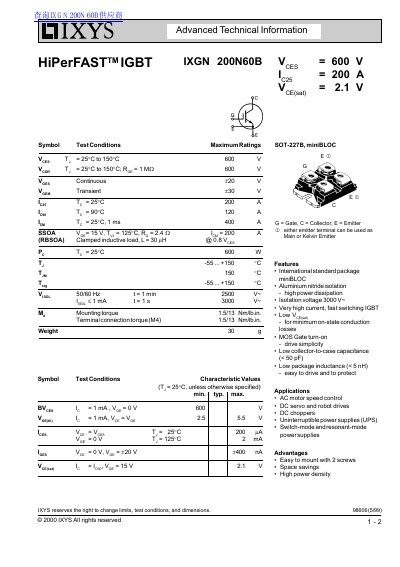

The document describes the IXYS IXGN 200N60B, an IGBT module housed in a SOT-227B (miniBLOC) package. Key features include international standard packaging with aluminium nitride isolation for high power dissipation and up to 3000 V~ isolation voltage. The device utilizes MOS gate turn-on technology for drive simplicity and offers low collector-to-case capacitance. This manual is written in Chinese.
| Isolation Voltage (AC) | 3000 V~ |
|---|---|
| Collector-Emitter Saturation Voltage | 2.1 V |
| Thermal Resistance Junction-to-Case | 0.21 K/W |
The IXGN 200N60B uses a SOT-227B, miniBLOC package.
Yes, the design allows either emitter terminal to function as the Main or Kelvin Emitter.
