IXGR 60N60C2 and IXGR 60N60C2D1 are two high-performance IGBT devices launched by IXYS, using TO-247AD package, with high current handling capability, DCB isolated mounting tab and the latest generation HDMOSTM process.

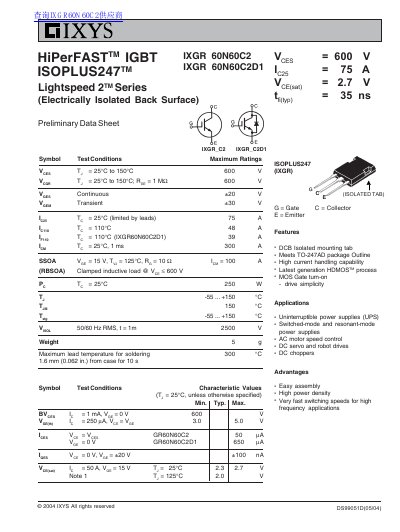

This document provides preliminary data for the IXYS Lightspeed 2 Series IXGR 60N60C2 and IXGR 60N60C2D1 IGBT modules. These devices feature an electrically isolated back surface (DCB) and are designed for high current handling with very fast switching speeds. They utilize the latest generation HDMOSTM process and are housed in a TO-247AD package.
| Collector-Emitter Voltage (VCES) | 600 V |
|---|---|
| Continuous Collector Current (IC25) | 75 A |
| Maximum Junction Temperature (TJM) | 150 °C |
| Thermal Resistance Junction-to-Case (RthJC) | 0.50 K/W |
| Turn-on Delay Time (td(on)) | 18 ns |
| Turn-off Time (td(off)) | 95 ns |
| Forward Voltage Drop (VF) | 2.0 V |
| Reverse Recovery Time (trr) | 35 ns |
The module is suitable for uninterruptible power supplies, switched-mode power supplies, AC motor speed control, and DC servo drives.
The maximum lead temperature for soldering is 300 °C for 10 seconds at 1.6 mm from the case.
Yes, the IXGR 60N60C2D1 has a continuous current rating of 650 µA for IGES, whereas the C2 is 50 µA.
