IXGH is a power MOSFET produced by IXYS company. Its maximum voltage is 600 V and maximum current is 75 A. Its features are international standard JEDEC TO-247 AD, TO-264, TO-268 package, low VCE(sat), high current handling capability, MOS gate turn-on drive simplicity.

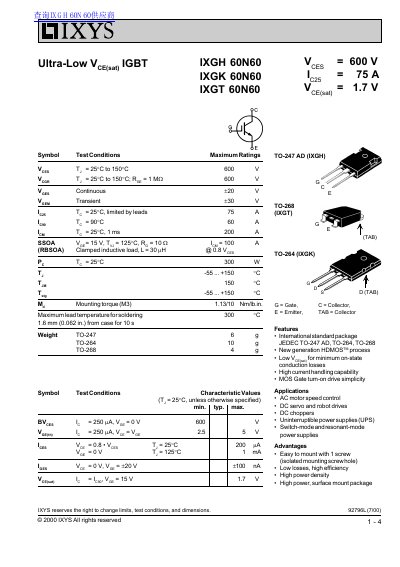

This document provides a comprehensive technical overview of the IXYS IXGH60N60, IXGK60N60, and IXGT60N60 IGBT transistors. It details maximum ratings, characteristic values such as saturation voltage and switching times, and outlines available packages including TO-247 AD, TO-264, and TO-268.
The datasheet includes application information for AC motor speed control, DC servo drives, and power supplies. It also features detailed mechanical drawings with dimensional specifications in millimeters and inches for all supported package types.
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.7 V |
|---|---|
| Thermal Resistance Junction-to-Case (TO-247) | 0.25 K/W |
The device is available in TO-247 AD, TO-264, and TO-268 packages.
It is designed for AC motor speed control, DC servo and robot drives, DC choppers, and UPS systems.
