This document describes the features and characteristics of the HiPerFASTTM IGBT products produced by IXYS, including international standard packages, high current, fast switching, low on-state conduction losses, and MOS gate turn-on. This product is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switch-mode power supplies.

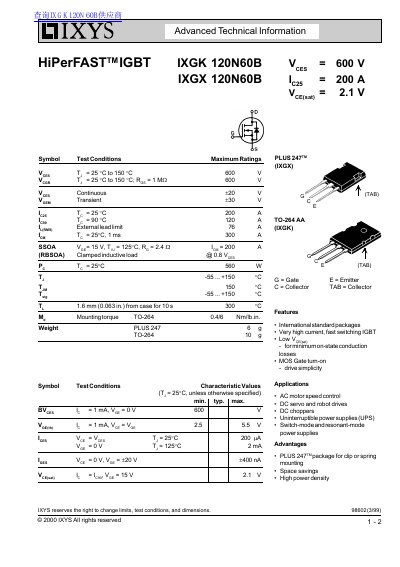

The document is a technical datasheet for the IXYS IXGK 120N60B IGBT module, designed for high-current and fast-switching applications in power electronics. It lists maximum ratings such as collector-emitter voltage and continuous current, along with characteristic values like saturation voltage and switching times. This manual is written in Chinese.
| Collector-Emitter Voltage (VCESTJ) | 600 V |
|---|---|
| Continuous Collector Current (IC25TC) | 200 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.1 V |
| Thermal Resistance Junction-to-Case (RthJC) | 0.21 K/W |
| Package Type | TO-264 |
Applications include AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies.
The operating temperature range is from -55 to +150 degrees Celsius.
