IXGH 50N60B IXGK 50N60B IXGT 50N60B IXGJ 50N60B are IGBT devices manufactured by IXYS. They have high-frequency, high-current, and high-switching speed characteristics, and are suitable for AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switch-mode and resonant-mode power supplies.

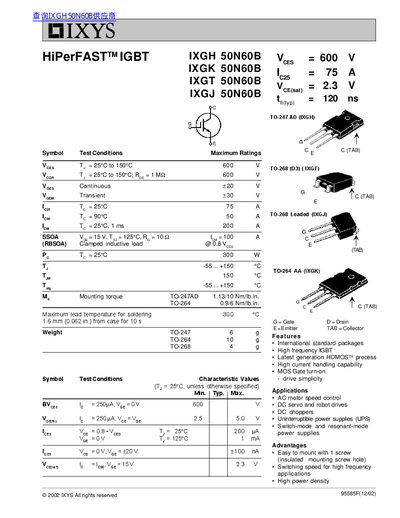

This document is a technical datasheet for the IXYS family of High Frequency IGBTs, specifically models IXGH 50N60B, IXGK 50N60B, IXGT 50N60B, and IXGJ 50N60B. It details maximum ratings, electrical characteristics, thermal resistance values, and switching performance for these power semiconductor devices.
| Collector-Emitter Voltage (VCESTJ) | 600 V |
|---|---|
| Continuous Collector Current at 25°C | 75 A |
| Collector-Emitter Saturation Voltage (Typical) | 2.3 V |
| Thermal Resistance Junction-to-Case (TO-247) | 0.42 K/W |
| Mounting Torque (TO-247 AD) | 1.13 Nm / 10 lb.in. |
The maximum operating junction temperature is 150 °C.
The maximum collector-emitter voltage is 600 V.
The maximum continuous collector current is 75 A.
The required mounting torque is 1.13 Nm or 10 lb.in.
