IXGH 50N60B2 IXGT 50N60B2 is a high-frequency IGBT produced by IXYS. It has the characteristics of high current handling capability and MOS gate turn-on drive simplicity. It is widely used in PFC circuits, uninterruptible power supplies (UPS), switched-mode and resonant-mode power supplies, AC motor speed control, DC servo and robot drives, DC choppers

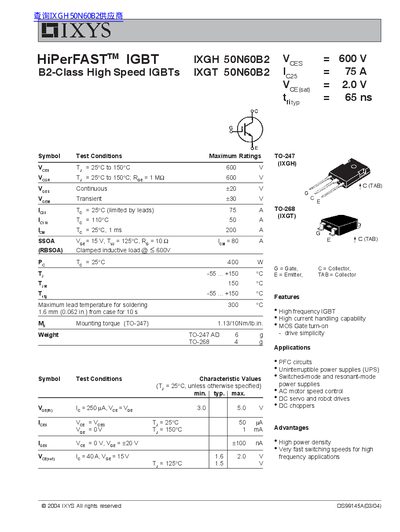

This document is a technical datasheet for the IXYS HiPerFASTTM IGBT series, specifically covering the IXGH 50N60B2 (TO-247 package) and IXGT 50N60B2 (TO-268 package). These high-frequency, high-current devices are designed for applications requiring fast switching speeds and high power density.
| Collector-Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current (IC25) | 75 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.0 V typ. |
| Turn-Off Time (tfi) | 65 ns typ. |
| Operating Temperature Range | -55 ... +150 °C |
The maximum continuous collector current at 25 °C is 75 A.
The maximum lead temperature for soldering is 300 °C.
