IXYS IXGH28N30A/IXGT28N30A IGBT Module Datasheet

This document describes the features and characteristics of IXYS products, including international standard packages, high current handling capability, newest generation HDMOSTM process, applications, and advantages.

Brand: IXYS
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 51 KB
Published: 11 July, 2012
Updated: 29 September, 2023
MD5 checksum: 865B464C83B85837F6CB594121600225
PDF: IXYS IXGH28N30A/IXGT28N30A IGBT Module Datasheet PDF

About this manual

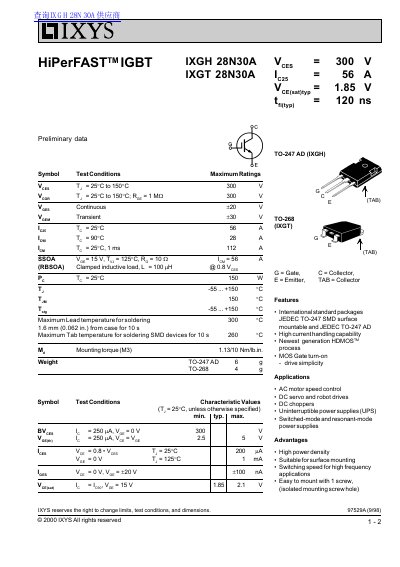

This document is a preliminary data sheet for the IXYS IXGH28N30A (TO-247 AD) and IXGT28N30A (TO-268) IGBT modules. It details technical specifications, maximum ratings, electrical characteristics, and physical dimensions suitable for surface mounting applications.

What's inside

Features
Applications
Advantages
Maximum Ratings
Electrical Characteristics
Package Dimensions

Specifications

Continuous Collector Current (IC)	5.6 A
Peak Pulse Current (ICM)	112 A
Operating Junction Temperature Range	-55 to +150 °C
Package Type (IXGH)	TO-247 AD
Package Type (IXGT)	TO-268

Frequently asked questions

What are the main applications for this IGBT module?

The module is suitable for AC motor speed control, DC servo and robot drives, DC choppers, UPS systems, and switched-mode power supplies.

Is this module suitable for surface mounting?

Yes, the document states it is a 'Newest generation HDMOS TM process' that is 'SMD surfacemountable'.

What is the typical saturation voltage (VCE(sat))?

The typical VCE(sat) at IC= 90A and VGE = 15 V is 2.1 V.
