IXGH/IXGM 25N100 is a high voltage, high current, low VCE(sat) IGBT produced by IXYS. The maximum voltage is 1000V, the maximum current is 50A, the typical VCE(sat) is 3.5V, and it is suitable for AC motor speed control, DC servo and robot drives, DC choppers and uninterruptible power supplies.

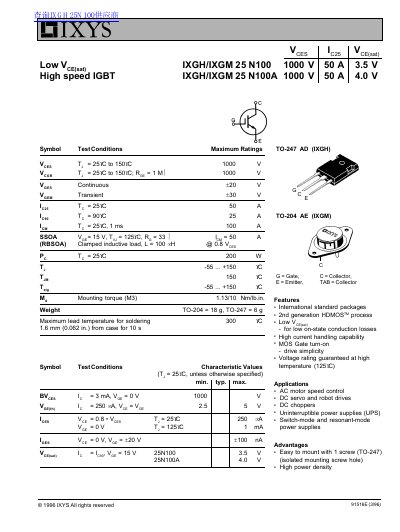

This document is a technical datasheet for the IXGH25N100, IXGM25N100, IXGH25N100A, and IXGM25N100A IGBT modules manufactured by IXYS. It details maximum ratings, electrical characteristics, switching times, and thermal data for these high-speed IGBTs available in TO-247 and TO-204 packages.
| Collector-Emitter Voltage | 1000 V |
|---|---|
| Continuous Collector Current (25°C) | 50 A |
| Continuous Collector Current (90°C) | 25 A |
| Operating Junction Temperature Range | -55 ... +150 °C |
| Storage Temperature Range | -55 ... +150 °C |
| Package Weight (TO-247) | 18 g |
| Package Weight (TO-204) | 6 g |
| On-State Voltage Drop (25N100) | 3.5 V |
| On-State Voltage Drop (25N100A) | 4.0 V |
| Thermal Resistance Junction-Case | 0.62 K/W |
| Thermal Resistance Case-Heatsink | 0.25 K/W |
These modules are designed for AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
The maximum lead temperature for soldering is 300 °C for 1.6 mm from the case for 10 seconds.
The mounting torque for the TO-247 package is 1.13 Nm or 10 lb.in.
