IXGH25N100U1 and IXGH25N100AU1 are IGBT products from IXYS, with international standard TO-247 AD package, low Vce(sat) and soft recovery characteristics

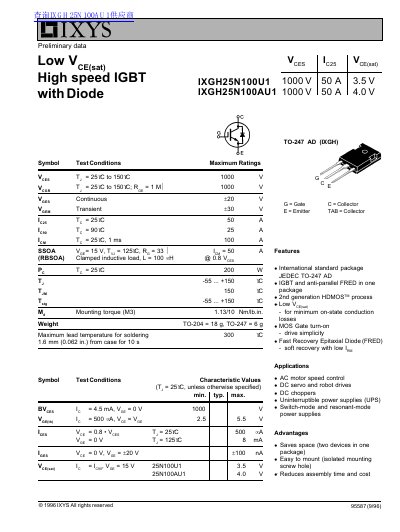

This document provides preliminary data for the IXGH25N100U1 high-speed IGBT and the IXGH25N100AU1 model which includes an anti-parallel Fast Recovery Epitaxial Diode (FRED). Both devices are housed in a single International standard package (JEDEC TO-247 AD) utilizing the 2nd generation HDMOS process. The combination is designed to save space and reduce assembly time compared to using separate components.
| Package Type | TO-247 AD |
|---|
