This document describes the features and characteristics of the HiPerFASTTM IGBT TO-268 model produced by IXYS. The product is a device that integrates IGBT and anti-parallel FRED diode, with high current handling capability and moderate frequency characteristics. It adopts the latest generation HDMOSTM process and has advantages such as simple MOS gate turn-on drive. It is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switch-mode and resonant-mode power supplies.

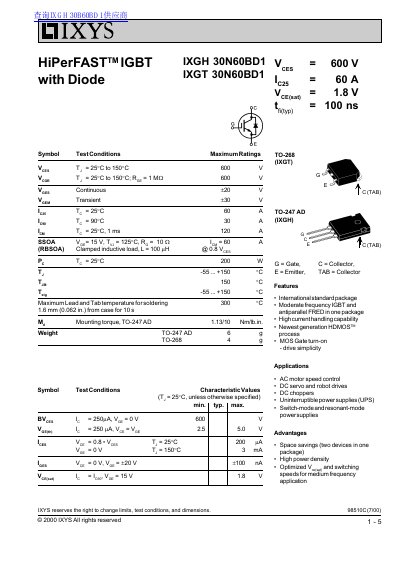

This document provides a technical overview of the IXYS IXGH (TO-247 AD) and IXGT (TO-268) packages for the 30N60BD1 model. It details the device as an International standard package containing a moderate frequency IGBT and antiparallel FRED in one unit, utilizing the HiPerFAST process.
| Collector-Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current (IC) | 60 A |
| Collector-Emitter Saturation Voltage | 1.8 V |
| Thermal Resistance Junction-to-Case (TO-247 AD) | 0.62 K/W |
| Package Weight (TO-247 AD) | 6 g |
Applications include AC motor speed control, DC servo and robot drives, DC choppers, UPS, and switch-mode power supplies.
The maximum operating junction temperature is 150°C.
