This document introduces a combination package product of high-frequency IGBT and anti-parallel FRED from IXYS. It has high current handling capability and is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switched-mode and resonant-mode power supplies. The product offers advantages such as space savings, high power density, and optimized VCE(sat) and switching speeds.

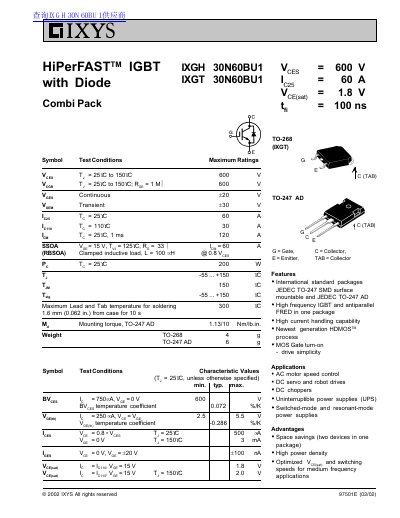

The document describes the IXGH 30N60BU1 and IXGT 30N60BU1 IGBT modules, which combine a high-frequency IGBT and an antiparallel FRED diode in a single package. These devices utilize the HDMOSTM process to offer high current handling capabilities and optimized saturation voltage for medium frequency applications. They are available in standard JEDEC TO-247 and TO-247 AD surface mountable packages.
| Collector-Emitter Voltage | 600 V |
|---|---|
| Continuous Collector Current (25°C) | 60 A |
| Continuous Collector Current (110°C) | 30 A |
| Collector-Emitter Saturation Voltage | 1.8 V |
| Turn-off Time | 100 ns |
| Package Type | TO-247 AD |
They are suitable for AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
The design saves space by integrating two devices in one package and provides high power density.
The maximum junction temperature is 150 °C.
