IXGH 28N30B, IXGT 28N30B is a power transistor with international standard JEDEC TO-268 and JEDEC TO-247 AD packages, which can be applied to AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switched-mode and resonant-mode power supplies.

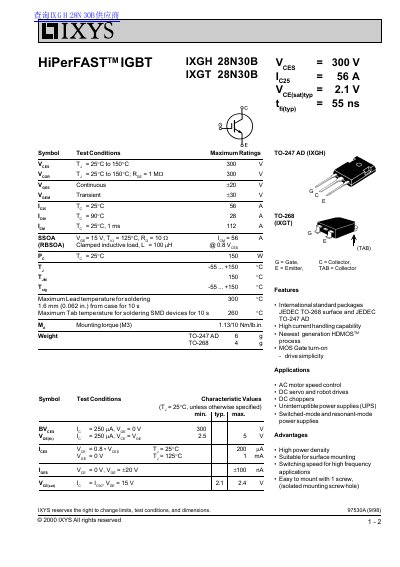

This document provides technical specifications, test conditions, maximum ratings, and dimensions for the IXYS IXGH 28N30B (TO-247 AD) and IXGT 28N30B (TO-268) IGBTs. The devices feature a high current handling capability using the newest generation HDMOS process with MOS gate turn-on drive simplicity.
| Continuous Collector Current at 25°C (IC25) | 56 A |
|---|---|
| Collector Current at 90°C (IC90) | 28 A |
| Peak Pulse Collector Current (ICM) | 112 A |
| Operating Junction Temperature Range (TJ) | -55 ... +150 °C |
| Storage Temperature Range (Tstg) | -55 ... +150 °C |
| Thermal Resistance Junction-to-Case (RthJC) | 0.83 K/W |
The device is suitable for AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switched-mode or resonant-mode power supplies.
The maximum rated collector-emitter voltage is 300 V.
