The document describes the features and characteristics of an AC motor speed controller product. The product has high current handling capability, the latest generation HDMOSTM process, and MOS gate turn-on - drive simplicity.

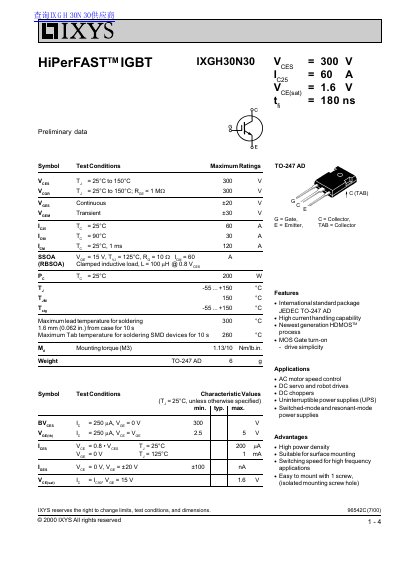

This document is a preliminary data sheet for the IXYS IXGH30N30 IGBT module. It specifies maximum ratings such as a collector-emitter voltage of 300 V and a continuous collector current of 60 A at 25°C. The module features the HiPerFAST process and is housed in a JEDEC TO-247 AD package suitable for surface mounting.
| Collector-Emitter Voltage (VCE) | 300 V |
|---|---|
| Continuous Collector Current (IC) at 25°C | 60 A |
| Continuous Collector Current (IC) at 90°C | 30 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.6 V |
| Turn-off Time (tfi) | 180 ns |
| Package Type | TO-247 AD |
The module is suitable for AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
The maximum continuous collector current (IC) is 60 A when the junction temperature is 25°C.
The device can dissipate up to 200 W when the junction temperature is 25°C.
