The IXGH 25 N120A is a high voltage, high current, low saturated voltage (Vce(sat)) IGBT in an international standard JEDEC TO-247 AD package. It features a MOS gate drive, making it easy to drive. This product has a wide range of applications, including motor speed control, servo motor and robot drives, DC choppers, uninterruptible power supplies (UPS), switch-mode and resonant-mode power supplies, capacitor discharge systems, and solid state relays.

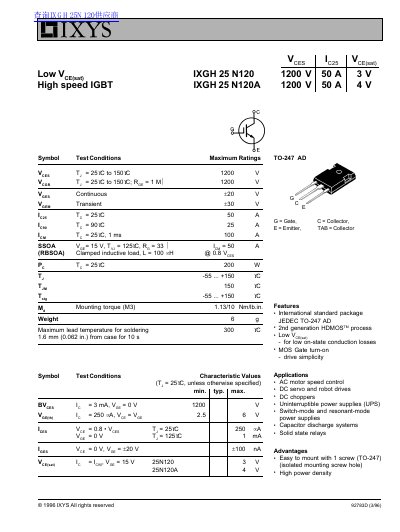

This document provides technical specifications for the IXGH 25 N120 and IXGH 25 N120A high-speed IGBTs. These devices utilize a 2nd generation HDMOS process and are packaged in the JEDEC TO-247 AD standard package. Key features include low on-state conduction losses and MOS gate turn-on drive simplicity.
| Package Type | TO-247 AD |
|---|---|
| Weight | 6 g |
Applications include AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies (UPS).
The maximum lead temperature for soldering is 300 °C for 10 seconds.
The MOS Gate turn-on feature provides drive simplicity.
