IXYS IXGH30N60B/IXGT30N60B Datasheet

This datasheet provides the maximum ratings, characteristic values, applications, advantages, etc. of IXGH series.

Brand: IXYS
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 51 KB
Published: 11 July, 2012
Updated: 30 September, 2023
Model: 30N60
MD5 checksum: 1CD87470F6DAA00D62413DDA1E638DA6
PDF: IXYS IXGH30N60B/IXGT30N60B Datasheet PDF

About this manual

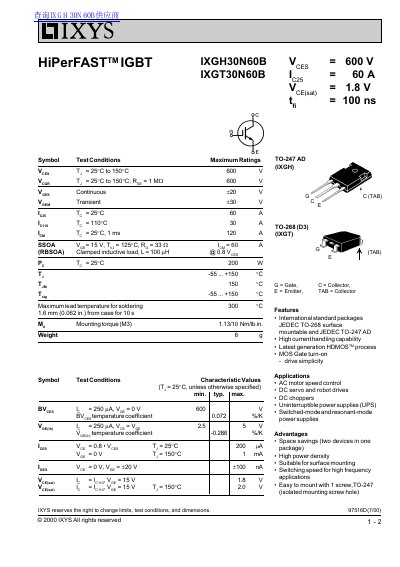

This document provides a datasheet for the IXYS IXGH30N60B and IXGT30N60B devices, which are HiPerFAST™ IGBTs. The text details maximum ratings, electrical characteristics, switching times, and physical dimensions for both TO-247 AD and TO-268 packages.

What's inside

Maximum Ratings
Electrical Characteristics
Switching Times
Package Outlines
Features
Applications
Advantages
Patents

Specifications

Collector-Emitter Voltage (Vces)	600 V
Continuous Collector Current (Ic)	60 A
Package Weight	6 g
Mounting Torque (M3)	1.13/10 Nm/Ib.in.

Frequently asked questions

What are the applications for these IGBTs?

They are suitable for AC motor speed control, DC servo and robot drives, DC choppers, UPS, and switched-mode power supplies.

What is the maximum continuous current rating at 25°C?

The device supports a maximum continuous current of 60 A when the temperature is 25°C.

How much mounting torque is required for M3 screws?

You must apply a mounting torque between 1.13 and 10 Nm/Ib.in. for M3 screws.

What is the maximum junction temperature?

The maximum junction temperature specified in this datasheet is 150°C.
