The document introduces a TO-247 AD ultra-low VCE(sat) IGBT product, which features an international standard package, low VCE(sat), high current handling capability, and MOS gate turn-on drive simplicity. The product is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), and switch-mode and resonant-mode power supplies.

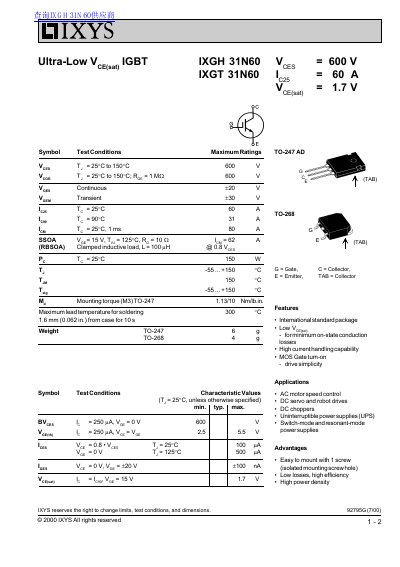

This document is a technical datasheet for the IXYS IXGH31N60 and IXGT31N60 IGBT modules. It provides comprehensive electrical specifications including maximum ratings such as collector-emitter voltage (VCE) of 600 V and continuous current (IC25C) of 60 A.
The datasheet details the device features, which include an international standard package (TO-247 AD or TO-268 TAB), low on-state conduction losses, and high power density. It also lists typical applications such as AC motor speed control, DC servo drives, and uninterruptible power supplies.
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.7 V |
|---|---|
| Thermal Resistance Junction-to-Case (TO-247) | 0.83 K/W |
The recommended mounting torque for the TO-247 package is 1.13 Nm (10 lb.in).
The maximum continuous collector current at 25 C is 60 A.
The typical on-state saturation voltage is 1.7 V.
