The document describes the features and characteristics of a product, including international standard packages, IGBT and anti-parallel FRED in one package, low VCE (sat), etc.

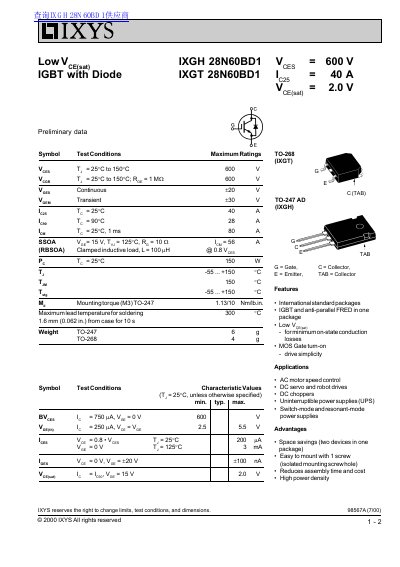

This document is a preliminary data sheet for the IXYS IXGH 28N60BD1 and IXGT 28N60BD1 IGBT modules. The device combines an IGBT with an anti-parallel FRED diode in a single package to save space and reduce assembly time.
| Collector-Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current at 25°C (IC) | 40 A |
| Collector Current at 90°C (IC) | 28 A |
| Peak Pulse Collector Current (ICM) | 80 A |
| Thermal Resistance Junction-to-Case (TO-247) | 0.83 K/W |
| Turn-on Energy (Eon) at 15ns td(on) | 1 mJ |
The module is designed for AC motor speed control, DC servo and robot drives, DC choppers, and power supplies.
The module offers space savings by combining two devices, easy mounting with one screw, high power density, and reduced assembly time.
The maximum operating junction temperature is +150°C.
