The DS95583C is a high frequency IGBT device with antiparallel diode produced by IXYS. It features high frequency, high current, high power density and easy driving. It is suitable for applications such as AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies (UPS), switched-mode and resonant-mode power supplies.

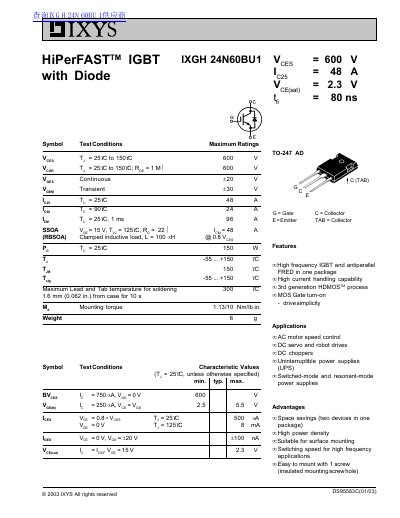

This document is a datasheet for the IXYS IXGH24N60BU1, a HiPerFAST IGBT module with an integrated antiparallel FRED diode. It is designed for high-frequency switching applications such as AC motor speed control, DC servo drives, and switched-mode power supplies. The device utilizes the 3rd generation HDMOSTM process to offer high current handling and space savings.
| Collector-Emitter Voltage (VCE) | 600 V |
|---|---|
| Continuous Collector Current (IC) | 48 A |
| Operating Junction Temperature Range | -55 ... +150 °C |
| Storage Temperature Range | -55 ... +150 °C |
| Turn-on Delay Time (td(on)) | 25 ns |
| Turn-off Delay Time (td(off)) | 250 ns |
| Thermal Resistance Junction-to-Case (RthJC) | 0.83 K/W |
| Package Type | TO-247 AD |
The maximum continuous collector current (IC) at 25°C is 48 A.
Yes, it is a HiPerFAST IGBT with an antiparallel FRED diode integrated in one package.
