MOTOROLA MC10EL14/MC100EL14 Guide(1)

MC100LVEL/100EL14 is a low skew 1:5 clock distribution chip designed explicitly for low skew clock distribution applications. The device can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal. The LVEL14 is functionally and pin compatible with the EL14 but is designed to operate in ECL or PECL mode for a voltage supply range of –3.0V to –3.8V ( or 3.0V to 3.8V). If a single-ended input is to be used the VBB output should be connected to the CLK input and bypassed to ground via a 0.01µF capacitor. The VBB output is designed to act as the switching reference for the input of the LVEL14 under single-ended input conditions, as a result this pin can only source/sink up to 0.5mA of current. The LVEL14 features a multiplexed clock input to allow for the distribution of a lower speed scan or test clock along with the high speed system clock. When LOW (or left open and pulled LOW by the input pulldown resistor) the SEL pin will select the differential clock input. The common enable (EN) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control. The internal flip flop is clocked on the falling edge of the input clock, therefore all associated outputs are latched to the LOW state.

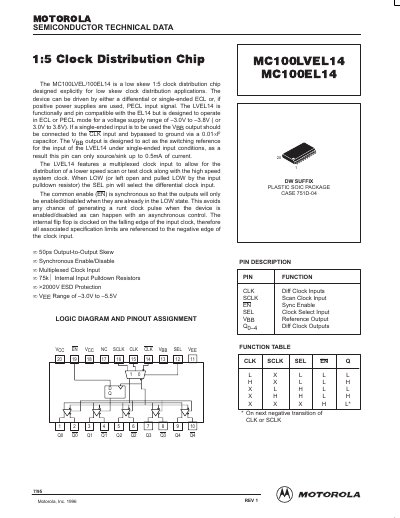

MOTOROLA MC10EL14/MC100EL14 Guide(1) - cover page
Brand
Motorola
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
65 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
99A0C7C07E480883244F66C16EC10580

About this manual

The Motorola MC100EL14 is a low skew 1:5 clock distribution chip designed for ECL or PECL logic applications. It features a multiplexed clock input to distribute lower speed scan or test clocks alongside high speed system clocks. The device includes a synchronous enable function to prevent runt clock pulses during enable/disable transitions.

What's inside

  • 1:5 Clock Distribution
  • Pinout Assignment
  • Function Table
  • Absolute Maximum Ratings
  • DC Characteristics
  • AC/DC Characteristics
  • Outline Dimensions

Specifications

Output-to-Output Skew50ps
Power Supply Range (VEE)-3.0V to -5.5V
Operating Temperature Range-40 to +85 C
Output Current (Continuous)50 mA
Package TypePlastic SOIC

Frequently asked questions

What is the function of the SEL pin?

When LOW, the SEL pin selects the differential clock input.

How does the synchronous enable work?

The common enable is synchronous so outputs are only enabled/disabled when they are already in the LOW state.
