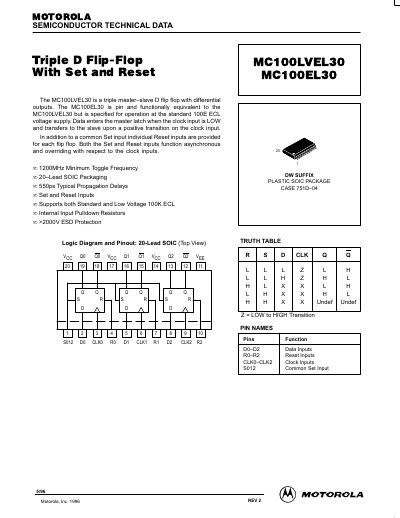

The MC100LVEL30 is a triple master-slave D flip-flop with differential outputs. The MC100EL30 is pin and functionally equivalent to the MC100LVEL30 but is specified for operation at the standard 100E ECL voltage supply. Data enters the master latch when the clock input is LOW and transfers to the slave upon a positive transition on the clock input. In addition to a common Set input, individual Reset inputs are provided for each flip-flop. Both the Set and Reset inputs function asynchronously and overriding with respect to the clock inputs.
This document provides technical specifications for the Motorola MC100LVEL30 and MC100EL30, which are triple master-slave D flip-flops featuring differential outputs. The devices support both Standard (MC100LVEL30) and Low Voltage 100K ECL voltage supplies.
| Maximum Toggle Frequency | 1.2 GHz (Typical) |
|---|---|
| Packaging Type | 20-Lead SOIC |
| Typical Propagation Delay | 550 ps |
| ESD Protection | >2000V |
The device supports a minimum toggle frequency of 1200MHz.
The maximum mold protrusion is 0.150 inches per side.
The typical propagation delay is 550ps.
