The MC100LVEL17 is a low-voltage, quad differential receiver. The device is functionally equivalent to the E116 device with the capability of operation from either a –3.3V or +3.3V supply voltage. The MC100EL17 is pin and functionally equivalent to the MC100LVEL17, but is specified for operation at the standard 100E ECL voltage supply. The LVEL17 provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the LVEL17 as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01µf capacitor. Under open input conditions, the D input will be biased at VCC/2 and the D input will be pulled down to VEE. This operation will force the Q output LOW and ensure stability.

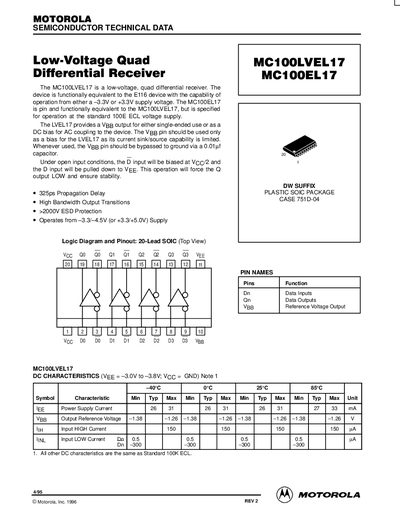

This document is a technical datasheet for the Motorola MC100LVEL17 and MC100EL17 devices. The MC100LVEL17 is described as a low-voltage, quad differential receiver functionally equivalent to the E116 device but capable of operation from either a -3.3V or +3.3V supply voltage. It features a VBp output for single-ended use or DC bias and includes specific pin configurations for data inputs (Dn) and outputs (Qn). The MC100EL17 is noted as being pin and functionally equivalent to the LVEL17 but specified for operation at standard 100E ECL voltage supply levels.
| Supply Voltage | -3.3/-4.5V or +3.3/+5.0V |
|---|---|
| Propagation Delay Typ | 325ps |
| ESD Protection | >2000V |
| Package Type | 20-Lead SOIC |
The device operates from a -3.3V or +3.3V supply voltage.
The maximum propagation delay is 560 ps.
The minimum input swing is 150 mV.
