The document is about MC100LVEL17 product technical data manual. MC100LVEL17 is a low-voltage, quad differential receiver. The device is functionally equivalent to the E116 device with the capability of operation from either a –3.3V or +3.3V supply voltage. MC100EL17 is pin and functionally equivalent to the MC100LVEL17, but is specified for operation at the standard 100E ECL voltage supply. The LVEL17 provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the LVEL17 as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01µf capacitor. Under open input conditions, the D input will be biased at VCC/2 and the D input will be pulled down to VEE. This operation will force the Q output LOW and ensure stability.

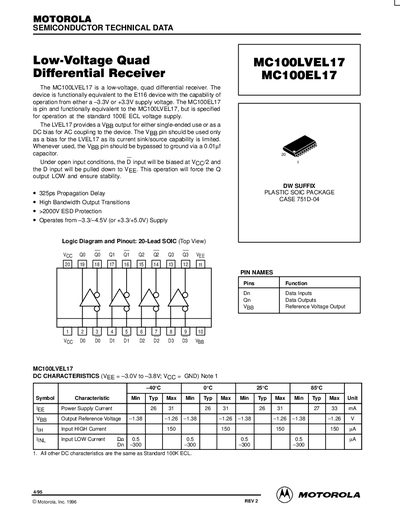

This document is a technical datasheet for the Motorola MC100LVEL17 and MC100EL17, which are low-voltage, quad differential receiver devices. The MC100LVEL17 is functionally equivalent to the E116 device but supports operation from either a -3.3V or +3.3V supply voltage. The MC100EL17 is pin and functionally equivalent to the MC100LVEL17 but is specified for operation at the standard 100E ECL voltage supply.
| Supply Voltage | -3.3/-4.5V (or +3.3/+5.0V) |
|---|---|
| Propagation Delay Typ | 325ps |
| ESD Protection | >2000V |
| Package Type | 20-Lead SOIC |
| Power Supply Current (Typ) | 31 mA |
The device operates from a -3.3V to -4.5V supply or a +3.3V to +5.0V supply.
The maximum propagation delay is 560 ps.
The minimum input swing is 150 mV.
