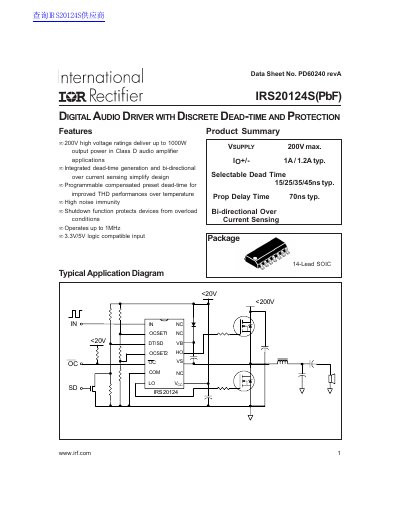

The IRS20124 is a 200V high voltage rated digital audio driver that can provide up to 1000W of output power in Class D audio amplifier applications. The device features integrated dead-time generation and bidirectional over current sensing to simplify design. The IRS20124 also features a programmable compensated preset dead-time for improved THD performance over temperature. The device has high noise immunity and features a shutdown function to protect devices from overload conditions. The IRS20124 operates at up to 1MHz and has 3.3V/5V logic compatible inputs.
The IRS20124S is a high voltage, high speed power MOSFET driver designed specifically for Class D audio amplifier applications. It features internal dead-time generation to improve Total Harmonic Distortion (THD) performance and includes bi-directional over-current sensing with programmable thresholds.
| Low side fixed supply voltage range | 10 to 18 V |
|---|---|
| High side quiescent current (Max) | 1 mA |
| Low side quiescent current (Max) | 4 mA |
| High to Low side leakage current (Max) | 50 uA |
| Output high short circuit current (Source) (Max) | 1.0 A |
| Output low short circuit current (Sink) (Max) | 1.2 A |
| Turn-on rise time (Typ) | 25 ns |
| Turn-off fall time (Typ) | 15 ns |
Yes, it operates up to 1MHz and is compatible with 3.3V/5V logic inputs.
The device supports a high side floating supply voltage of up to 200V.
The output buffers are capable of sourcing 1.0A and sinking 1.2A.
The OC signal ensures a minimum pulse width of 100ns when buffered.
