The IR2117 is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable rugged monolithic construction. The logic input is compatible with standard CMOS outputs. The output driver features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high or low side configuration which operates up to 600 volts.

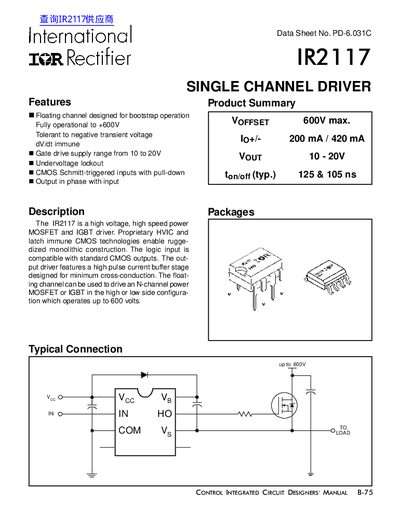

The document is a data sheet for the International Rectifier (IR) IR2117, a high voltage, high speed power MOSFET and IGBT driver. It features proprietary HVIC and latch immune CMOS technologies, allowing operation up to 600 volts with a floating channel designed for bootstrap operation.
| High Side Floating Supply Voltage (Max) | 625 V |
|---|---|
| Gate drive supply range | 10 to 20V |
| Turn-On Propagation Delay (Typ) | 125 ns |
| Output High Short Circuit Pulsed Current | 200 mA |
| Package Types | 8 Lead PDIP / SO-8 |
The absolute maximum rating for the high side floating supply voltage (VB) is 625 V.
The recommended operating range for the logic supply voltage (Vcc) is between 10 V and 20 V.
Yes, it is tolerant to negative transient voltage up to +/- 200 mA.
