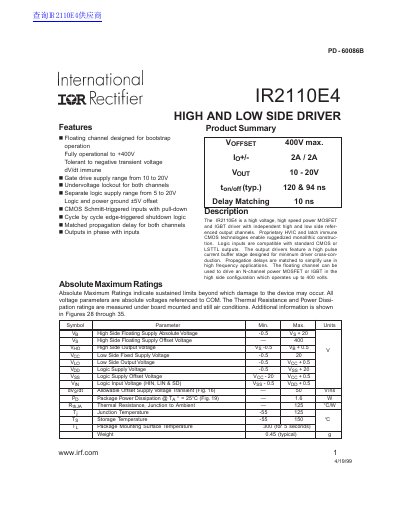

IR2110E4 is a high-low side driver produced by IR company. Its working voltage range is 10-20V, output voltage range is 10-20V, output current is +/-2A/2A, and delay matching is 10ns.
The IR2110E4 is a high voltage, high speed power MOSFET and IGBT driver featuring proprietary HVIC technology. It includes independent high and low side referenced output channels designed to drive N-channel power MOSFETs or IGBTs in the high-side configuration up to 400 volts.
| High Side Floating Supply Absolute Voltage | -0.5 Vg+20 |
|---|---|
| High Side Floating Supply Offset Voltage Max. | 400 |
| Turn-On Propagation Delay Typ. | 120 ns |
| Turn-Off Propagation Delay Typ. | 94 ns |
| Delay Matching Max. | 10 ns |
| Package Power Dissipation @ Ta <= 25°C | 1.6 W |
| Junction Temperature Range | -55 to 125 °C |
The device supports a high side floating supply offset voltage up to 400V.
The typical turn-on propagation delay (ton) is 120 ns under specified test conditions.
The separate logic supply range is from 5 to 20V.
