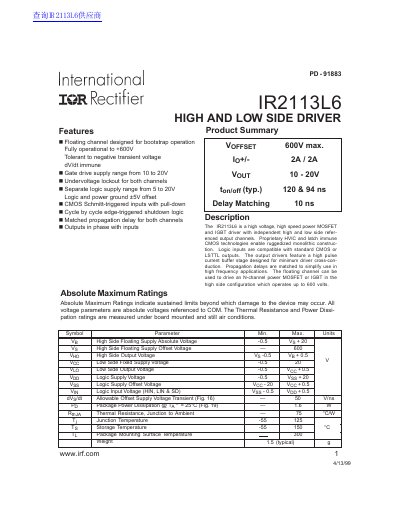

The IR2113L6 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.
The IR2113L6 is a high voltage, high speed power MOSFET and IGBT driver featuring independent high and low side referenced output channels. It utilizes proprietary HVIC and latch immune CMOS technologies for ruggedized monolithic construction. The device includes a floating channel designed for bootstrap operation, capable of driving N-channel power MOSFETs or IGBTs in the high side configuration up to 600 volts.
| High Side Floating Supply Offset Voltage | 600V max. |
|---|---|
| Gate drive supply range | 10 to 20V |
| Logic and power ground offset | +5V |
| Turn-On Propagation Delay (Typ.) | 120 ns |
| Delay Matching (Typ.) | 10 ns |
| Junction Temperature | -55 to 125 °C |
The typical turn-on propagation delay is 120 ns.
The logic and power ground offset is +5V.
