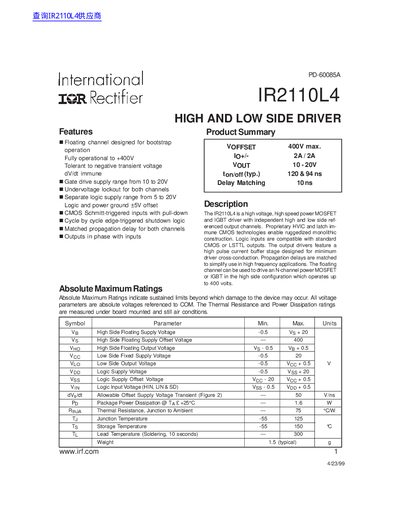

The IR2110L4 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.
The IR2110L4 is a high voltage, high speed power MOSFET and IGBT driver featuring independent high and low side referenced output channels. It utilizes proprietary HVIC and latch immune CMOS technologies for ruggedized monolithic construction. The device includes matched propagation delays to simplify use in high frequency applications.
| High Side Floating Supply Voltage (Max) | +20V |
|---|---|
| High Side Floating Supply Offset Voltage (Max) | 400V |
| Low Side Fixed Supply Voltage Range | 10 to 20V |
| Turn-On Propagation Delay (Typ) | 120ns |
| Turn-Off Propagation Delay (Typ) | 94ns |
| Delay Matching (HS & LS) | 10ns |
| Package Power Dissipation (@ Ta <= +25°C) | 1.6W |
| Junction Temperature Range | -55 to 125°C |
The device supports a maximum high side floating supply offset voltage of 400V.
The typical turn-on propagation delay is 120ns when Vs is 0V.
The gate drive supply range is from 10 to 20V, and the separate logic supply range is from 5 to 20V.
