IR2114/21141/2214/IR22141 half-bridge gate driver IC is a high performance, high reliability 1200V isolated 600V gate driver in 8-pin SOT-223 package. The driver has floating channel, soft over-current shutdown, synchronization shutdown, integrated desaturation detection circuit, two stage turn on output for di/dt control, separate pull-up/pull-down output drive pins, matched delay outputs and under voltage lockout with hysteresis band.

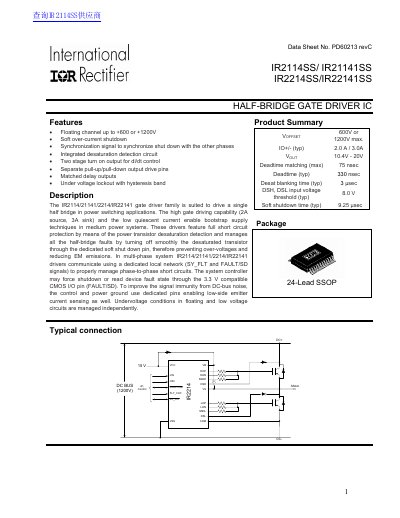

This document is a data sheet for the International Rectifier IR2114, IR21141, IR2214, and IR22141 half-bridge gate driver integrated circuits. These devices are designed to drive single half bridges in power switching applications, offering high gate driving capability with 2A source and 3A sink currents.
| Floating channel voltage | +600 or +1200V max. |
|---|---|
| Gate driving capability source | 2A |
| Gate driving capability sink | 3A |
| Supply voltage range | 10.4V - 20V |
| Deadtime matching (max) | 75 nsec |
| Deadtime (typical) | 330 nsec |
| Package type | 24-Lead SSOP |
