BAT 14-099R is a silicon crossover ring quad Schottky diode, suitable for applications such as double balanced mixers, phase detectors, and modulators. It has a medium barrier characteristic.

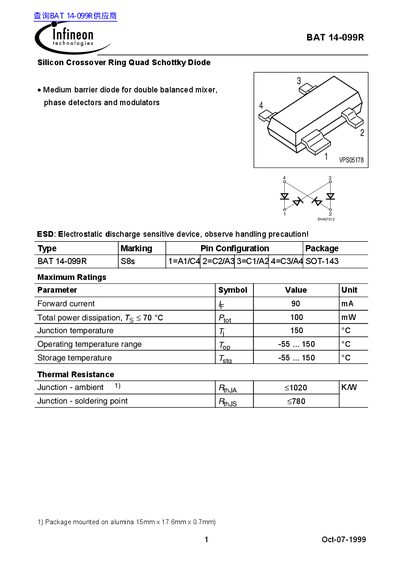

This document is a datasheet for the Infineon Technologies BAT 14-099R, which is described as a Silicon Crossover Ring Quad Schottky Diode. It features a medium barrier design intended for use in double balanced mixers, phase detectors, and modulators.
The device is housed in an SOT-143 package with four pins configured as A1/C4, C2/A3, C1/AZ, and C3/A4. Key maximum ratings include a forward current of 90 mA and an operating temperature range from -55 to 150 °C.
| Forward current (ip) | 90 mA |
|---|---|
| Total power dissipation | 100 mW |
| Junction temperature (Tj) | 150 °C |
| Operating temperature range (Top) | -55 ... 150 °C |
| Forward voltage (Ve) at If=1mA | 0.4 V min. |
It is a medium barrier diode intended for use in double balanced mixers, phase detectors, and modulators.
The maximum forward current is 90 mA.
The maximum total power dissipation is 100 mW when the temperature is below 70 °C.
