BFQ262 and BFQ262A are NPN video transistors with high breakdown voltages, low output capacitance, optimum temperature profile, good thermal stability, and excellent reliability properties. They are suitable for buffer/driver applications in high-resolution colour graphics monitors.

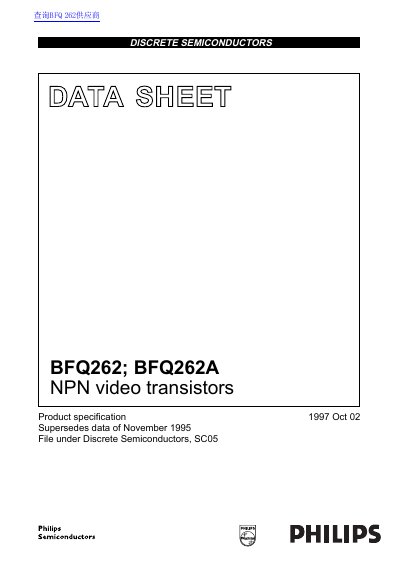

This document is a product specification datasheet for the Philips BFQ262 and BFQ262A, which are NPN video transistors designed for use in high-resolution colour graphics monitors as buffer or driver components. The devices are offered in SOT32 and TO-126 plastic packages and feature high breakdown voltages and low output capacitance.
| Collector-base voltage (BFQ262) | 100 V |
|---|---|
| Collector-base voltage (BFQ262A) | 115 V |
| Collector-emitter voltage (BFQ262) | 95 V |
| Collector-emitter voltage (BFQ262A) | 110 V |
| Collector current (DC) | 400 mA |
| Total power dissipation | 5 W |
| DC current gain (BFQ262) | 50 to 60 |
| DC current gain (BFQ262A) | 20 to 35 |
| Transition frequency (BFQ262) | 1 to 14 GHz |
| Transition frequency (BFQ262A) | 0.8 to 1.2 GHz |
The maximum DC collector current is 400 mA.
The maximum total power dissipation is 5 W when the temperature at the soldering point of the collector pin is below 85 °C.
The maximum DC collector current for the BFQ262 model is 400 mA.
The storage temperature range is from -65 °C to +150 °C.
