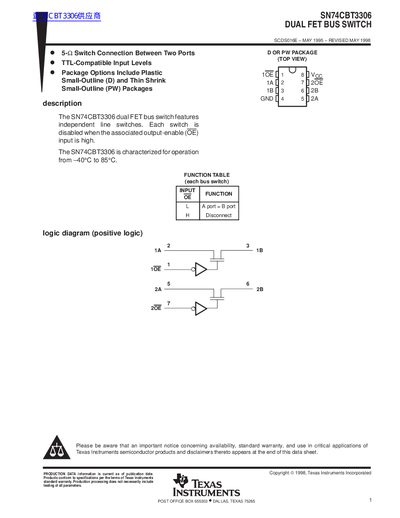

The SN74CBT3306 is a dual FET bus switch device manufactured by Texas Instruments. It features independent line switches. Each switch is disabled when the associated output-enable (OE) input is high. The SN74CBT3306 is characterized for operation from -40°C to 85°C.
The SN74CBT3306 is a dual FET bus switch featuring independent line switches. Each switch is disabled when the associated output-enable (OE) input is high. The device is characterized for operation from –40 °C to 85°C and is available in Plastic Small-Outline (D) and Thin Shrink Small-Outline (PW) packages.
| Operating Temperature Range | -40 °C to 85°C |
|---|---|
| Supply Voltage Range | -0.5 V to 7 V |
| Continuous Channel Current | 128 mA |
| On-state Resistance (Typical) | 57Ω |
| Package Types | D and PW |
Each switch is disabled when the associated output-enable (OE) input is high.
The device is available in Plastic Small-Outline (D) and Thin Shrink Small-Outline (PW) packages.
