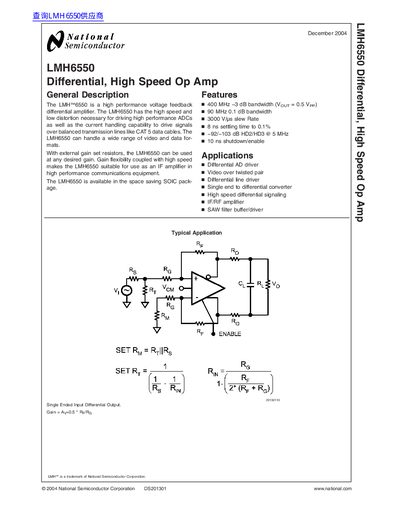

The LMH6550 is a high-performance voltage feedback differential amplifier with high speed and low distortion, suitable for driving high-performance ADCs and signals over balanced transmission lines such as CAT 5 data cables. It can handle a wide range of video and data formats and can be used at any desired gain with external gain set resistors. The LMH6550 is suitable for applications such as IF amplifiers in high-performance communications equipment.
The LMH6550 is a high performance voltage feedback differential amplifier designed to handle wide ranges of video and data formats. It features high speed capabilities with a -3 dB bandwidth up to 400 MHz and low distortion, making it suitable for driving high performance ADCs and balanced transmission lines like CAT 5 data cables.
The device offers flexibility in gain settings via external resistors and is available in an SOIC package. Key electrical characteristics include a slew rate of 3000 V/s, settling time to 0.1% of 8 ns, and harmonic distortion levels as low as -92 dB for HD2 at 5 MHz.
| -3 dB Bandwidth (Vout = 0.5 Vpp) | 400 MHz |
|---|---|
| Slew Rate | 3000 V/s |
| Settling Time to 0.1% | 8 ns |
| Shutdown/Enable Time | 10 ns |
| Operating Temperature Range | -40°C to +85°C |
It is suitable for use as an IF amplifier in high performance communications equipment and can drive signals over balanced transmission lines like CAT 5 data cables.
Yes, it is available in the space saving SOIC package.
Yes, with external gain set resistors, the LMH6550 can be used at any desired gain.
