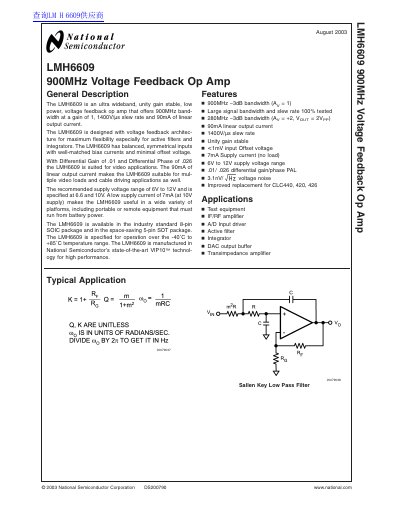

The LMH6609 is an ultra wideband, unity gain stable, low power, voltage feedback op amp that offers 900MHz bandwidth at a gain of 1, 1400V/µs slew rate and 90mA of linear output current. The LMH6609 is designed with voltage feedback architecture for maximum flexibility especially for active filters and integrators. The LMH6609 has balanced, symmetrical inputs with well-matched bias currents and minimal offset voltage. With Differential Gain of .01 and Differential Phase of .026 the LMH6609 is suited for video applications. The 90mA of linear output current makes the LMH6609 suitable for multiple video loads and cable driving applications as well. The recommended supply voltage range of 6V to 12V and is specified at 6.6 and 10V. A low supply current of 7mA (at 10V supply) makes the LMH6609 useful in a wide variety of platforms, including portable or remote equipment that must run from battery power. The LMH6609 is available in the industry standard 8-pin SOIC package and in the space-saving 5-pin SOT package. The LMH6609 is specified for operation over the -40˚C to +85˚C temperature range. The LMH6609 is manufactured in National Semiconductor’s state-of-the-art VIP10™ technology for high performance.
The LMH6609 is an ultra wideband, unity gain stable, low power voltage feedback op amp manufactured by National Semiconductor. It features a 900MHz bandwidth at a gain of 1 and offers high linear output current suitable for driving multiple video loads and cables.
Available in 8-pin SOIC and 5-pin SOT packages, the device operates over a temperature range of -40°C to +85°C. Key specifications include a slew rate of 1400V/us, an input offset voltage of less than 1mV, and supply currents as low as 7mA at 10V.
| -3dB Bandwidth (Ay = 1) | 900 MHz |
|---|---|
| Slew Rate | 1400 V/us |
| Linear Output Current | 90 mA |
| Supply Voltage Range | 6V to 12V |
| Input Offset Voltage | < 1 mV |
| Supply Current (no load) | 7 mA |
The recommended supply voltage range is 6V to 12V.
The low supply current is 7mA at a 10V supply.
The LMH6609 is specified for operation over the -40°C to +85°C temperature range.
