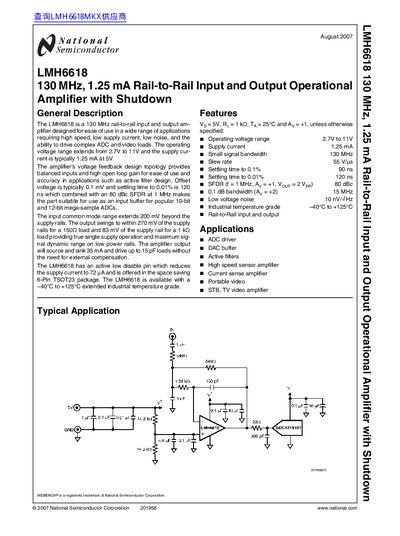

The LMH6618 is a 130 MHz rail-to-rail input and output operational amplifier designed for ease of use in a wide range of applications requiring high speed, low supply current, low noise, and the ability to drive complex ADC and video loads.
The LMH6618 is a high-speed, low-power operational amplifier designed for driving complex ADCs and video loads. It features a voltage feedback design topology that provides balanced inputs and high open-loop gain, making it suitable for active filter designs. The device operates over a wide supply voltage range of 2.7V to 11V.
| Small signal bandwidth | 130 MHz |
|---|---|
| Supply current | 1.25 mA |
| Slew rate | 55 V/us |
| Operating voltage range | 2.7V to 11V |
| Temperature grade | -40°C to +125°C |
The device operates with a supply voltage between 2.7V and 11V.
Activating the shutdown pin reduces the supply current to 72 yA.
