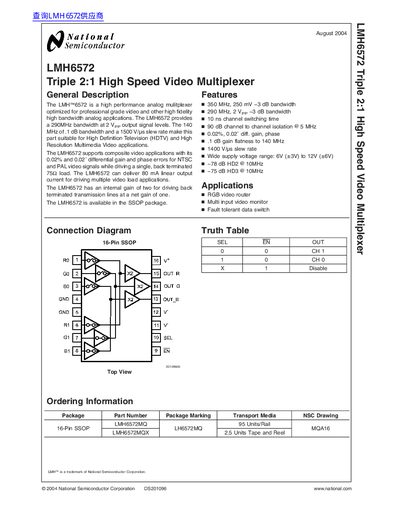

The LMH6572 is a high performance analog multiplexer optimized for professional grade video and other high fidelity high bandwidth analog applications. The LMH6572 provides a 290MHz bandwidth at 2 VPP output signal levels. The 140 MHz of .1 dB bandwidth and a 1500 V/µs slew rate make this part suitable for High Definition Television (HDTV) and High Resolution Multimedia Video applications. The LMH6572 supports composite video applications with its 0.02% and 0.02˚ differential gain and phase errors for NTSC and PAL video signals while driving a single, back terminated 75Ω load. The LMH6572 can deliver 80 mA linear output current for driving multiple video load applications. The LMH6572 has an internal gain of two for driving back terminated transmission lines at a net gain of one. The LMH6572 is available in the SSOP package.
The LMH6572 is a triple 2:1 high speed video multiplexer designed for professional grade video and other high fidelity high bandwidth analog applications. It provides a 290MHz bandwidth at 2 Vpp output signal levels and supports composite video applications with low differential gain and phase errors.
| -3 dB Bandwidth (Vout = 0.25 Vee) | 350 MHz |
|---|---|
| Channel to Channel Switching Time | 10 ns |
| Differential Gain Error | 0.02% |
| Slew Rate | 1400 V/us |
| Supply Voltage Range | 6V to 12V |
The device can deliver 80 mA linear output current for driving multiple video load applications.
The device has an internal gain of two, which allows it to drive back terminated transmission lines at a net gain of one.
The LMH6572 is available in the SSOP package.
